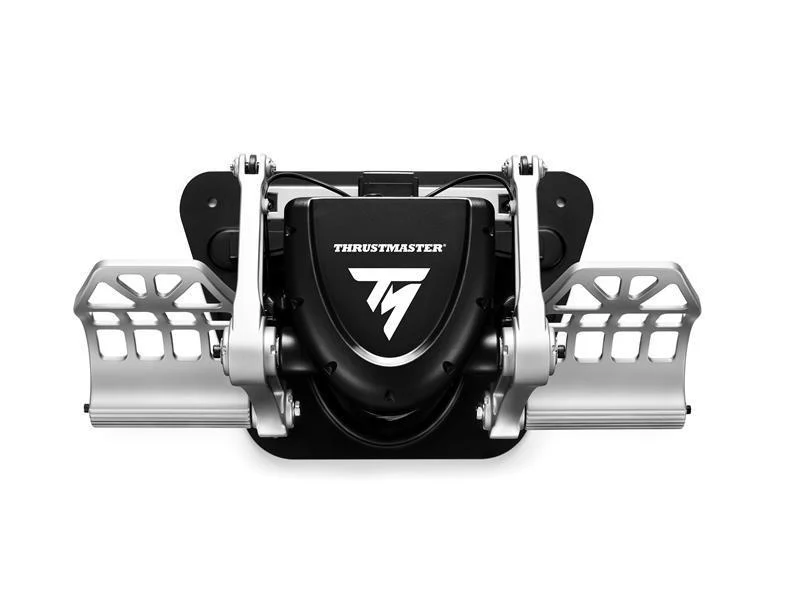

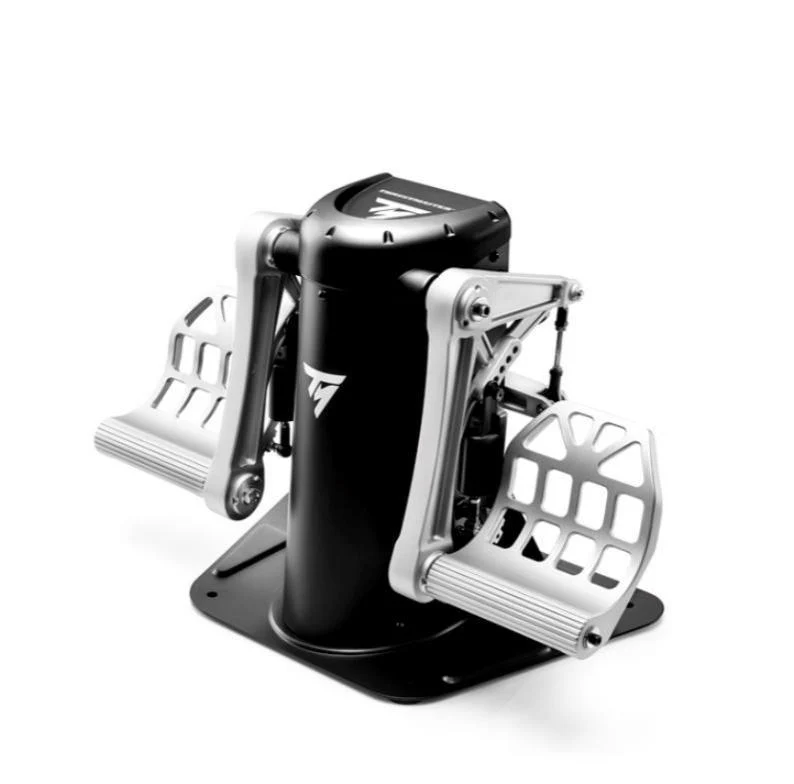

Thrustmaster Pendular Rudder Pedals

Thrustmaster PENDUL_R technology provides a unique suspended mechanism for smooth, fluid motion. In conjunction with the magnetic sensors, this mechanism ensures perfect precision, even for minor adjustments.

Highlights:

* Two very precise differential brakes for perfectly-proportioned braking.
* 100 Percent metal structure - weighs more than 7 kg!
* 32 industrial plain bearings.
* Realistic dimensions: 53 x 36 x 36 cm (W x D x H).
* Metal base plate for excellent stability, even when used without a cockpit.
* Can be fixed into cockpits.

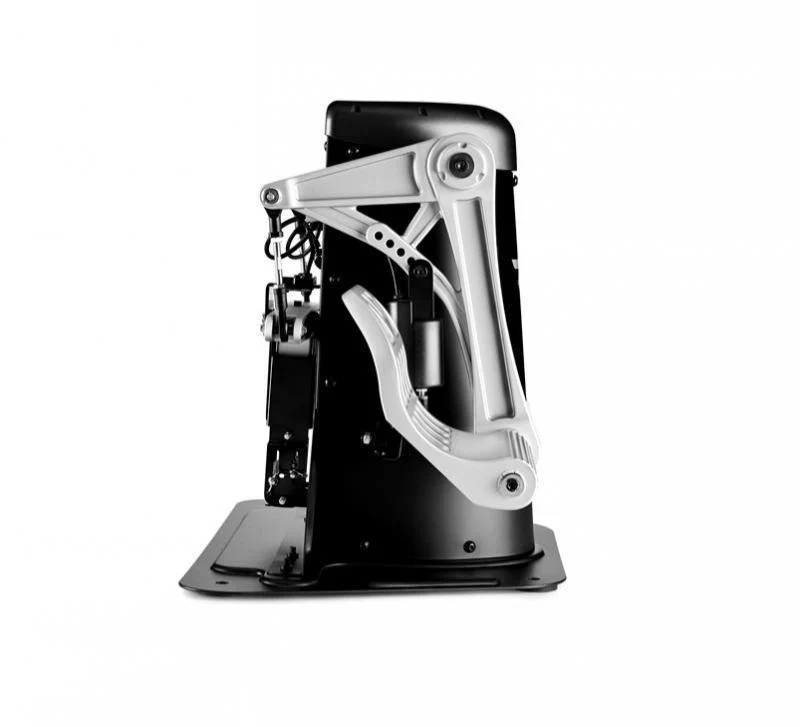

Revolutionary Rudder Mechanism

Thrustmaster PENDUL_R™ technology: unique suspended mechanism for smooth, fluid motion. In conjunction with the magnetic sensors, this mechanism ensures perfect precision, even for minor adjustments.

• Two very precise differential brakes for perfectly-proportioned braking.
• 100% metal structure – weighs more than 15.4 lb / 7 kg.
• 32 industrial plain bearings.
• Realistic dimensions: 20.9 x 14.2 x 14.2 inches / 53 x 36 x 36 cm (W x D x H).
• Metal base plate for excellent stability, even when used without a cockpit.
• Can be fixed onto Cockpit.

Adjustability & Versatility

Springs’ positions can be adjusted, to fine-tune the resistance according to your preferences (two springs are included).

• Pedals can be adjusted into five positions, at angles between 35° and 75°.
• For use below desks or onto cockpits.
• For Flight Sim gaming: combat and civilian. It is also developed for warbirds  closed combat &  Space Sim combat maneuvers.
• For Fighter plane combat,  civilian plane,  airliner , helicopters,  warbirds  and spaceship.
• For solo flight or for flying in formations.

Unrivaled precision, from the designer of the HOTAS Warthog

H.E.A.R.T. (HallEffect AccuRate Technology) technology: 3D Hall effect magnetic sensors.

• 16-bit precision on 3 axes (rudder / left differential brake / right differential brake): 65,536 values on each axis; 0.005° of precision.
• The magnets ensure ultra-precise, frictionless action that won’t change over time.
• Built-in electronics, with the ability to update the device’s firmware.

T.A.R.G.E.T. programming software

Thrustmaster Advanced Prgramming Graphical Editor software: combine your device with other Thrustmaster devices so that they are recognized as a single USB device, and load or create specific profiles for each game.Please visit https://support.thrustmaster.com/tpr to find T.A.R.G.E.T. profiles specially created for the TPR for use in your favorite simulations : DCS , War Thunder, IL2 ,   Flight Sim World , Xplane , PRepare3D ,  Elite Dangerous …



In The Box

1 x TPR Rudder

2 x Metal differential brake pedals to be attached by the user

2 x Allen Keys (2.5 mm and 3 mm)

2 x Flat Wrenches (8 mm and 14 mm)

1 x User Manual

1 x Consumer Warranty Information.
